TROLMASTER DSC-2 240V C02 DEVICE STATION

TROLMASTER DSC-2 240V C02 DEVICE STATION

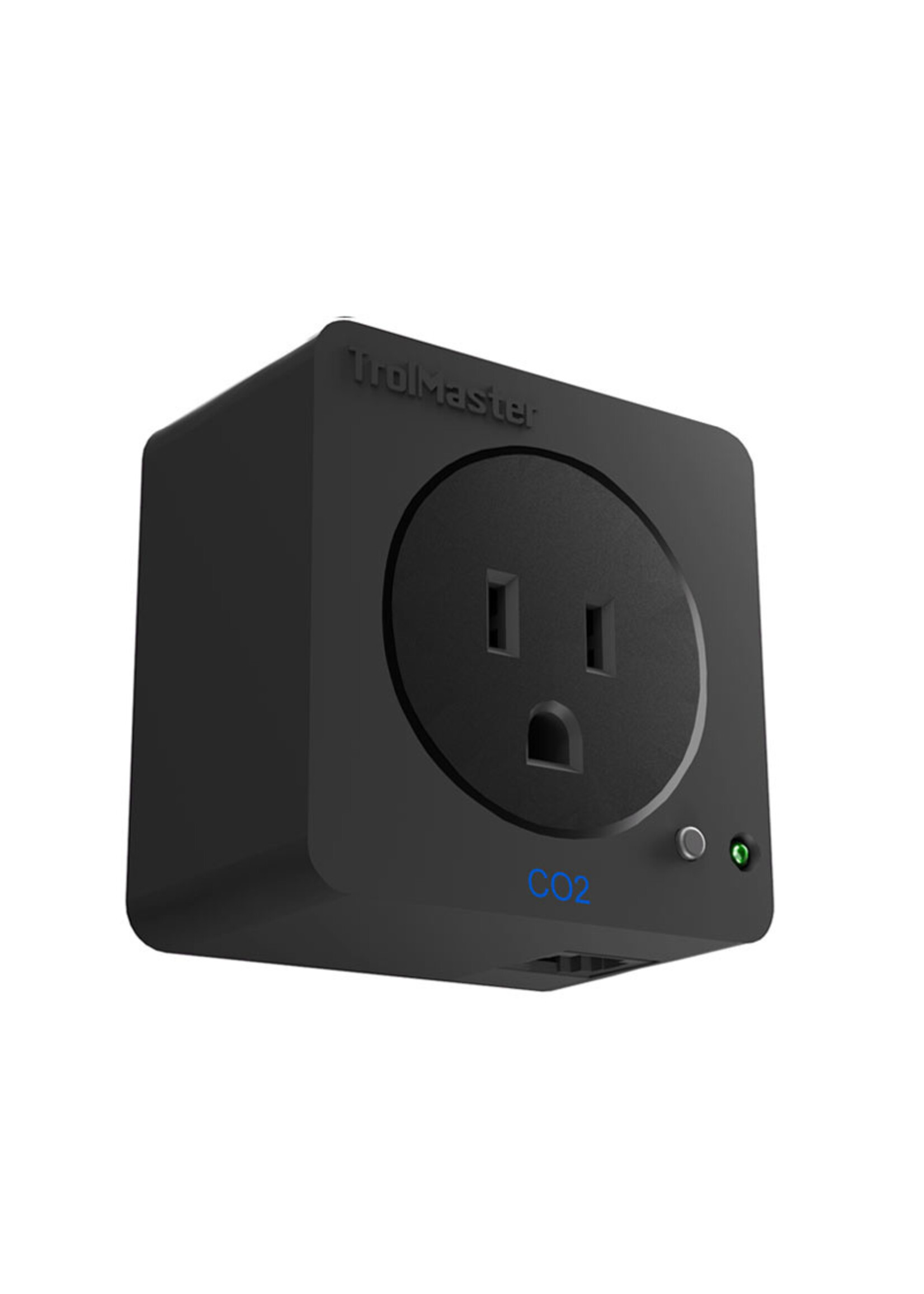

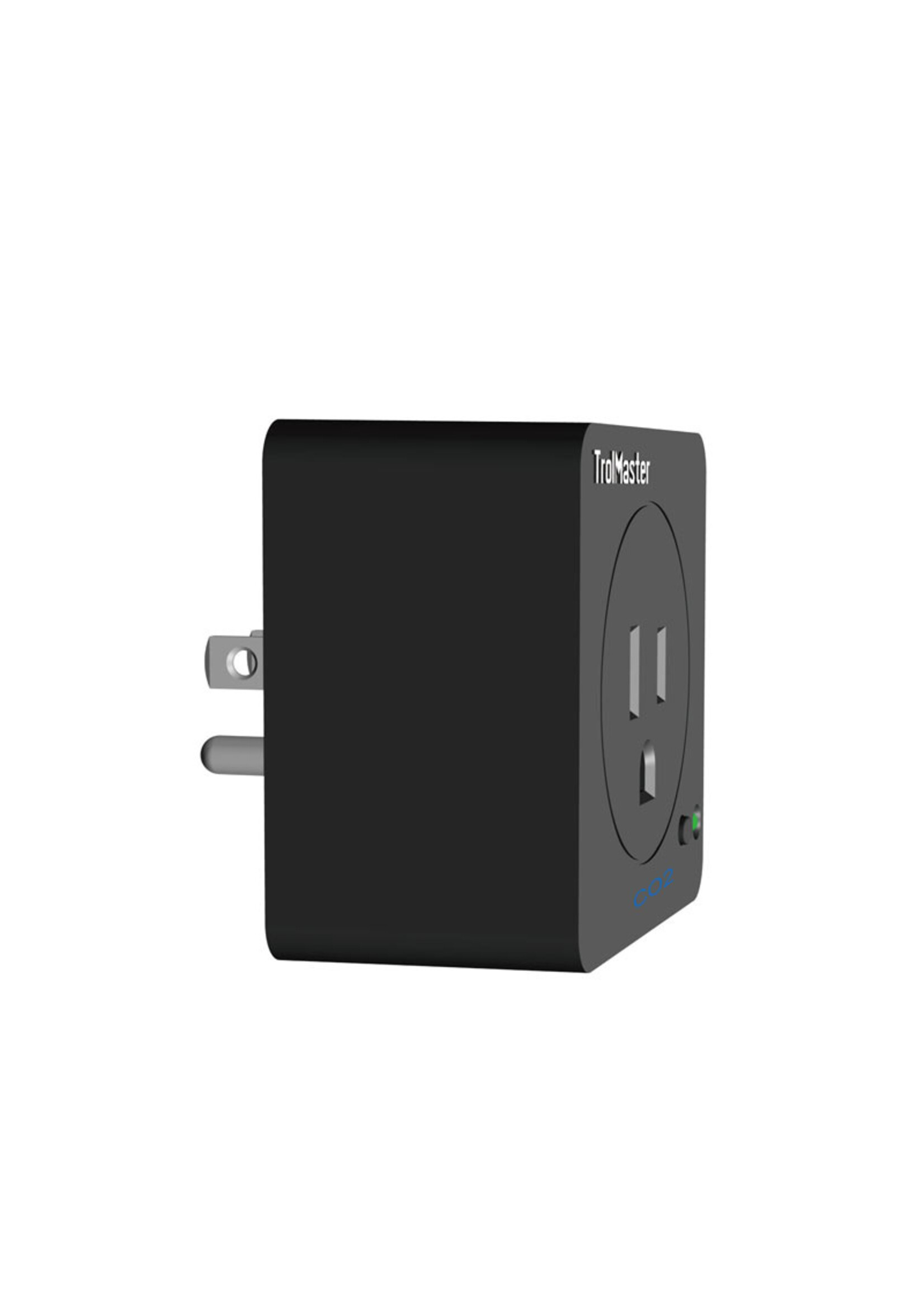

The TrolMaster DSC-1 CO2 control / device module allows user the to easily connect and control standard supplemental CO2 devices or CO2 exhaust controls to the Hydro-x. Any CO2 device that is 10-amps @ 240 volts or less can be controlled by the DSC-2.

LED status:
* Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller. *Pressing the small button on the module will address/link the module when first installed.
* Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
* SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
* Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.

Features

• LED Power Indicator
• 3-Prong Attaching Plug
• RJ12 Cable Socket
• Addressing
• Plug & Play

Package content

• 1 x Device Station
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter
