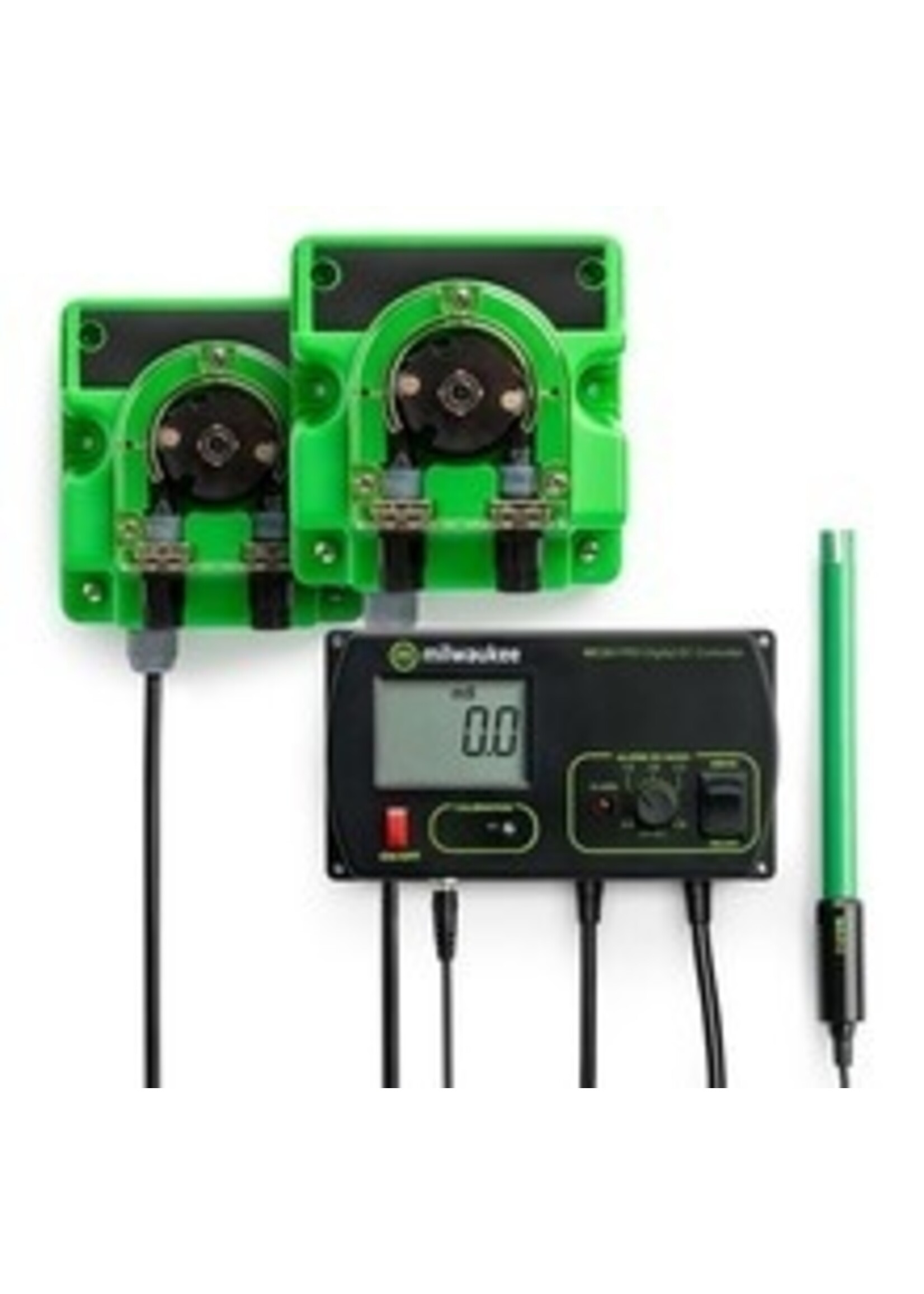

MILWAUKEE MC745 EC CONTROLLER

The MC745 kit includes the MC311 EC controller and two MP810 dosing pumps for automatic monitoring and fine adjustment of EC levels. Simply set your EC parameters and the Milwaukee EC controller and pumps will handle the rest.
The Milwaukee MC745 PRO controller kit is preferred by users who want to optimize their testing process and maintain continuous stable levels. Common applications include nutrient tanks.

TECHNICAL SPECIFICATIONS

MC311 SPECIFICATIONS

• Range: 0.0 – 10.0 mS/cm
• Resolution: 0.1 mS/cm
• Accuracy: ±2% FS
• Calibration: manual, 1-point
• Setpoint: 0.8 to 2.8 mS/cm
• Alarm: active when the measured value is higher or lower than the setpoint
• Temperature compensation: automatic, from 0 to 50°C
• EC electrode: MA812/2 (included)
• Environment: 0 to 50 °C / 32 to 122 °F; max. relative humidity 95%
• Power supply: 12 VDC adapter (included)
• Power driver: 115 VAC, 2 A, 60 Hz or 230 VAC, 1 A, 50 Hz
• Mounting kit (included)

MP810 SPECIFICATIONS

• Max. flow rate: 0.6 L/h
• Max. pressure: 1.5 bar
• Tubing: Santoprene
• Outer tube connection: 6 mm
• Power supply: 240 VAC, 50-60 Hz or 110 VAC, 60 Hz
• Power consumption: 0.42 W
