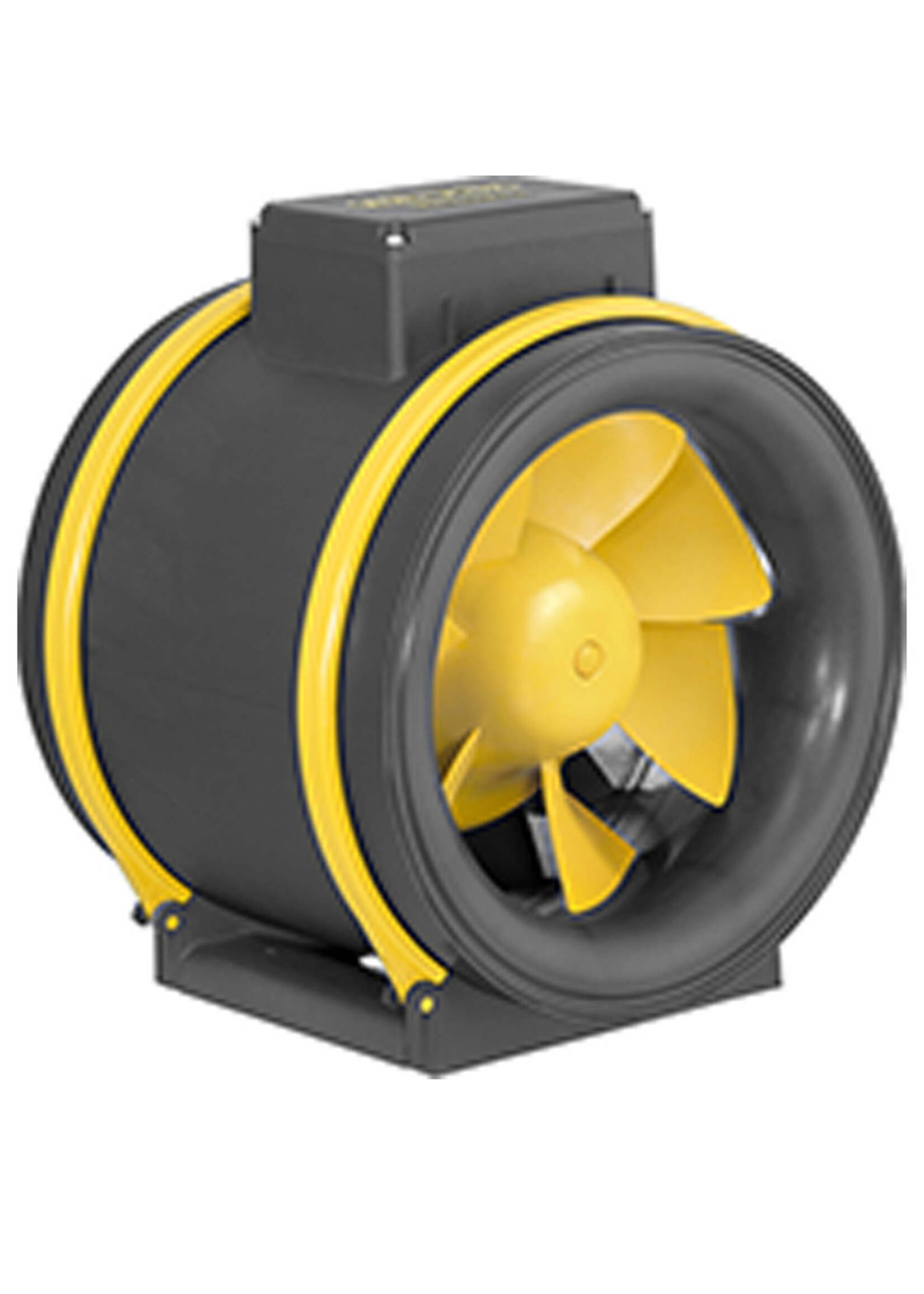

CAN MAX FAN PRO EC 250 / 2175

€576,95
Article number: 41.073
Availability: On backorder
Delivery time: 3 - 5 days

Kenmerken



  • The best 3D rotor - stator system
  • Compact, easy to mount, use and clean
  • Elegant and robust plastic housing
  • New EC technology motor, efficient an powerful
  • Strong airflow while consuming less electricity
  • Ventilation duct adapter including mounting brackets

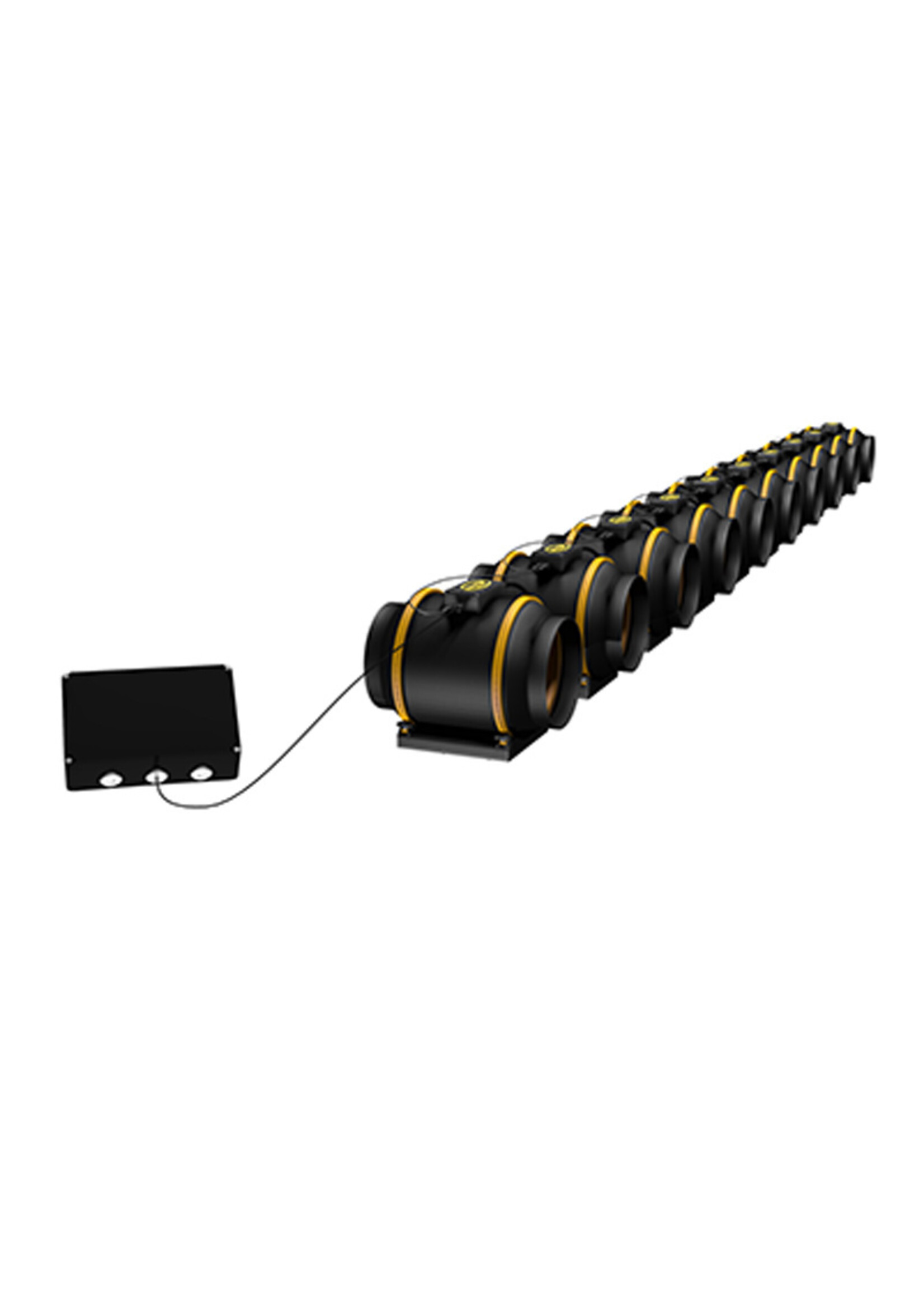

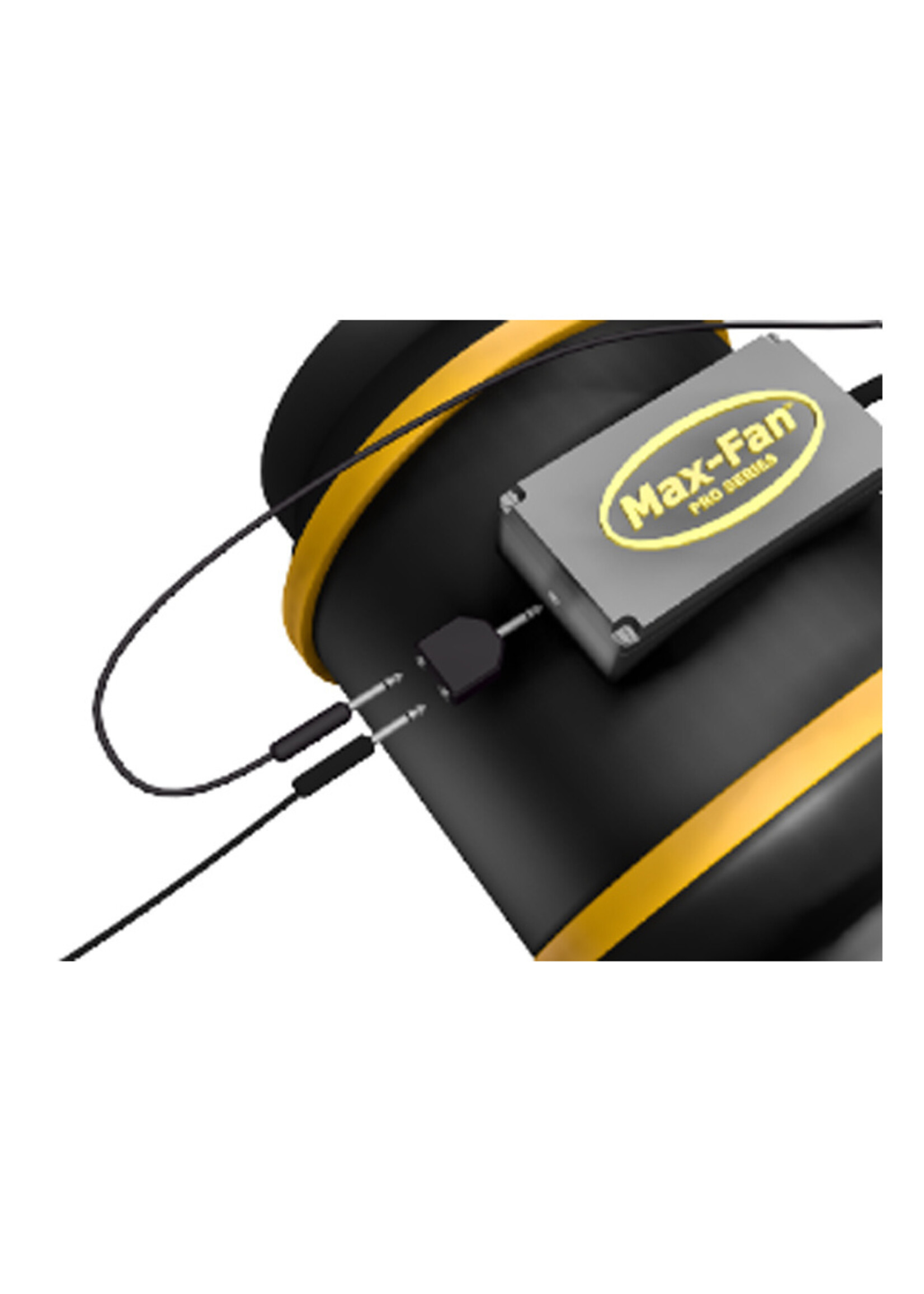

Max Fan Pro Series with EC technology is a turbine or mixed flow fan with the highest aerodynamic efficiency and the best energy consumption level due to the new EC technology motor, together with the 3D rotor stator system. The powerful but silent operation of Max Fan Pro Series EC is the result of the uniform turbulence free air flow and the continuous, totally noise free plug and play Can Fan EC Controller for speed or speed & temperature. Up to 10 EC motor fans can be connected and controlled at once using the Can Fan EC Controller.
Max Fan Pro Series EC: it’s German made, compact and very easy to install, use and clean as the ventilation duct adapter is integrated into the mounting brackets. You just have to mount the adapter first and then fasten the fan with two screws.
The entire range meets the mandatory ErP requirements for all EU marketed fans.



Technical Datasheet PDF

Technical Specifications



Type

Capacity [m3/h]

Diameter [mm]

Housing

Weight [kg]

Current [A]

Power [W]

150/776 776 150 Plastic 2,4 0,6 67
160/807 807 160 Plastic 2,6 0,6 73
200/1301 1301 200 Plastic 3,2 1,0 121
250/2175 2175 250 Plastic 4,1 2,1 304
315/2956 2956 315 Plastic 6,9 2,0 282
355/3308 3308 355 Plastic 8,7 1,8 261



Combination examples



Type

Combination 1

Combination 2

Combination 3

Combination 4

Combination 5

150/776 LITE 800 BFT 350 BFT 366 INLINE 600
160/807 LITE 800 BFT 350 BFT 366 W/50 INLINE 600
200/1301 LITE 1500 BFT 100 W/100 BFT 375 INLINE 1000
250/2175 LITE 2000 BFT 150 W/150
315/2956 LITE 3000
355/3308 LITE 3000 LITE 3500
