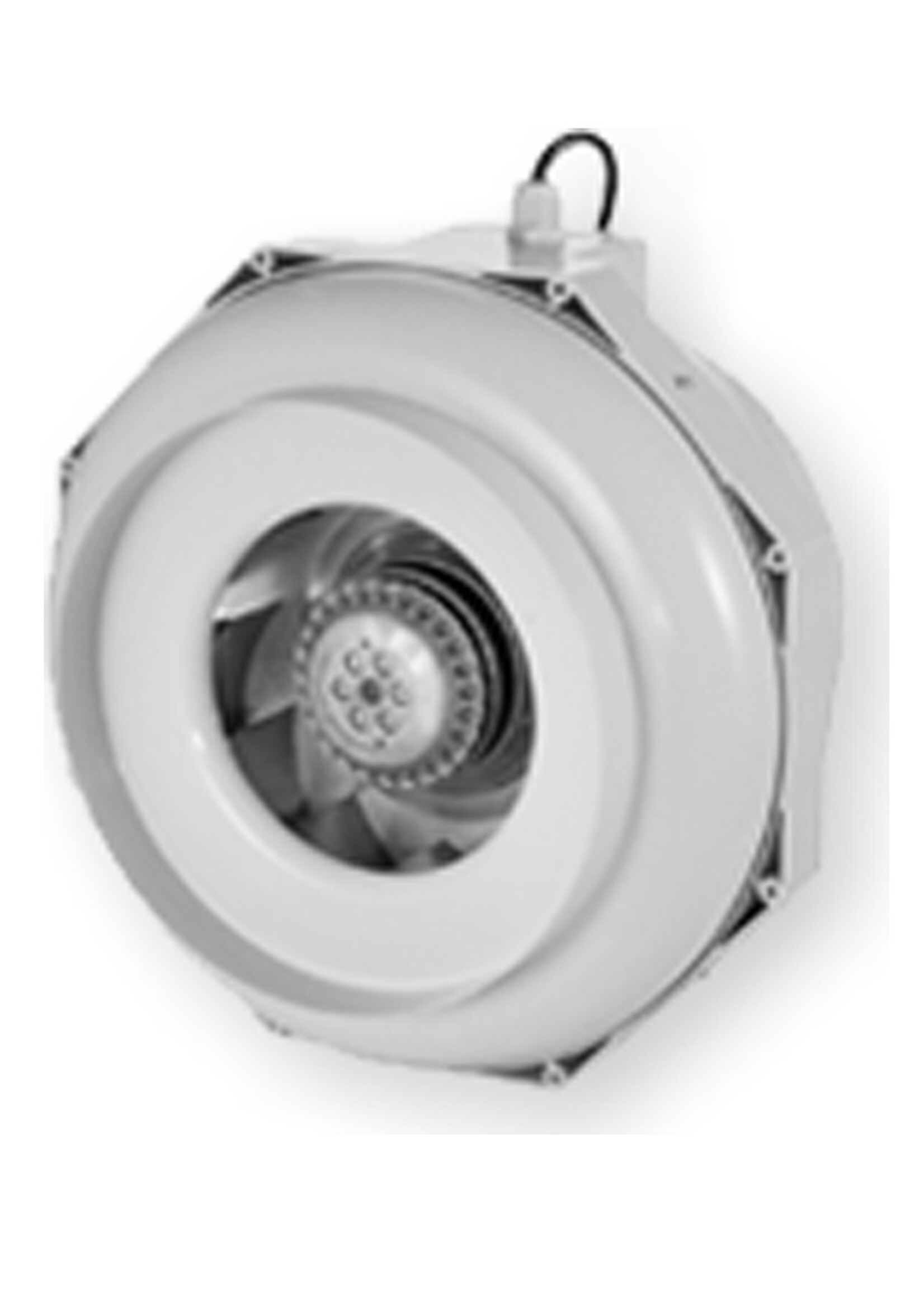

CAN FAN RKW 125L
| Article number: | 5100002400 |
| Availability: | On backorder |
| Delivery time: | 3 - 5 days |
Overview
- Backward curved centrifugal fan
- From 200m3/h up to over 1170m3/h
- Plastic housing
- All fans come with mounting brackets
- Automatic temperature control
- Temperature setting switch integrated

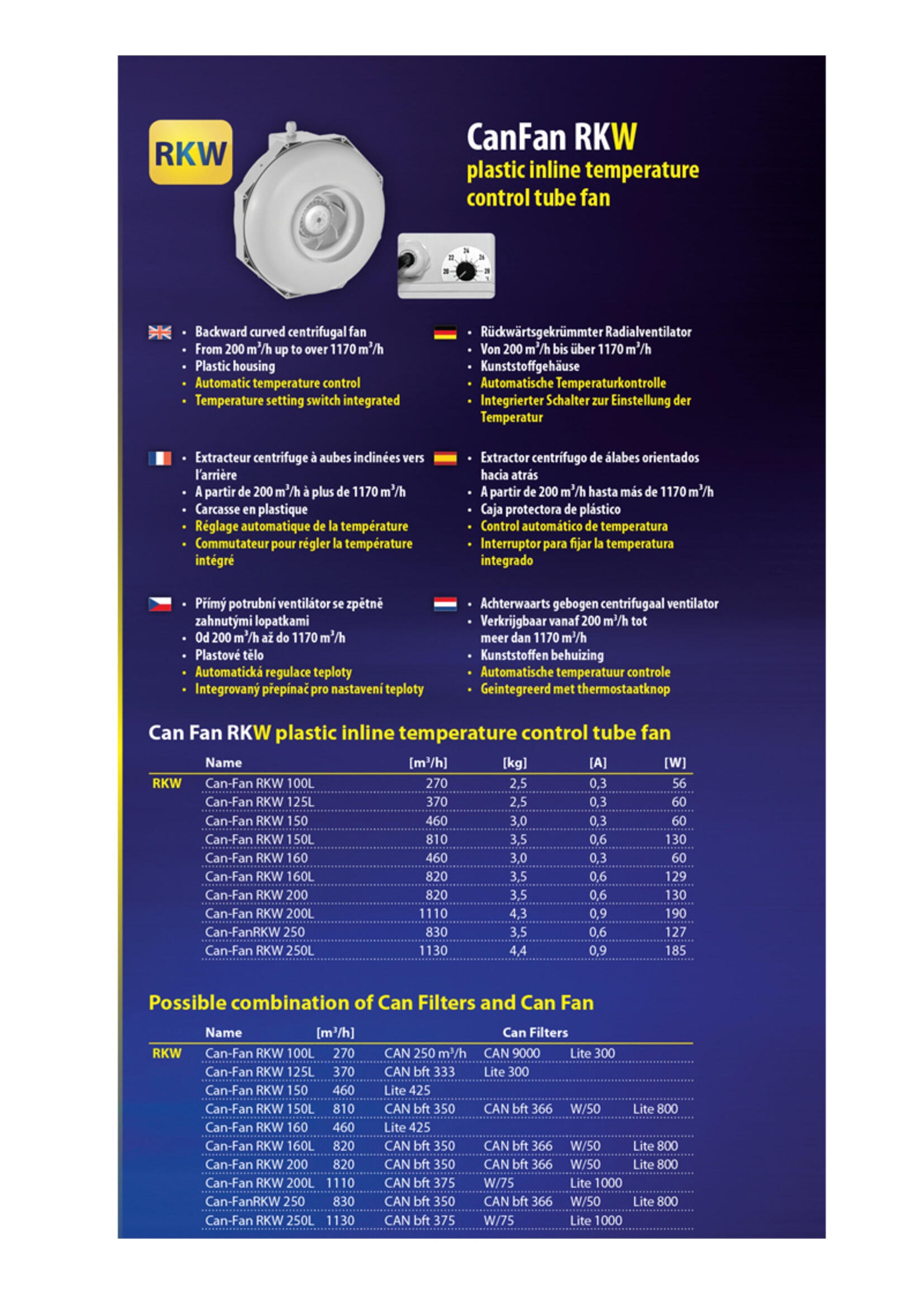

Technical specifications
|
Type |
Capacity [m3/h] |
Diameter [mm] |
Housing |
Weight [kg] |
Current [A] |
Power [W] |
|
RKW 100L |
270 |
100 |
Plastic |
2,5 |
0,3 |
56 |
|
RKW 125L |
370 |
125 |
Plastic |
2,5 |
0,3 |
60 |
|
RKW 150 |
460 |
150 |
Plastic |
3,0 |
0,3 |
60 |
|
RKW 150L |
800 |
150 |
Plastic |
3,5 |
0,6 |
130 |
|
RKW 160 |
460 |
160 |
Plastic |
3,0 |
0,3 |
60 |
|
RKW 160L |
810 |
160 |
Plastic |
3,5 |
0,6 |
129 |
|
RKW 200 |
830 |
200 |
Plastic |
3,5 |
0,6 |
130 |
|
RKW 200L |
1060 |
200 |
Plastic |
4,3 |
0,9 |
190 |
|
RKW 250 |
840 |
250 |
Plastic |
3,5 |
0,6 |
127 |
Combination examples
|
Type |
Combination 1 |
Combination 2 |
Combination 3 |
Combination 4 |
|
RKW 100L |
LITE 300 | CAN 250M3/H | CAN 9000 | |
|
RKW 125L |
LITE 300 | CAN BFT 333 | ||
|
RKW 150 |
LITE 425 | |||
|
RKW 150L |
LITE 800 | CAN BFT 350 | CAN BFT 366 | W/50 |
|
RKW 160 |
LITE 425 | |||
|
RKW 160L |
LITE 800 | CAN BFT 350 | CAN BFT 366 | W/50 |
|
RKW 200 |
LITE 800 | CAN BFT 350 | CAN BFT 366 | W/50 |
|
RKW 200L |
LITE 1000 | CAN BFT 375 | W/75 | |
|
RKW 250 |
LITE 800 | CAN BFT 350 | CAN BFT 366 | W/50 |
