15000 PRO3 Split EX Inverter

€6.149,92
Article number: 1-2013
Availability: On backorder
Delivery time: 7 - 10 days

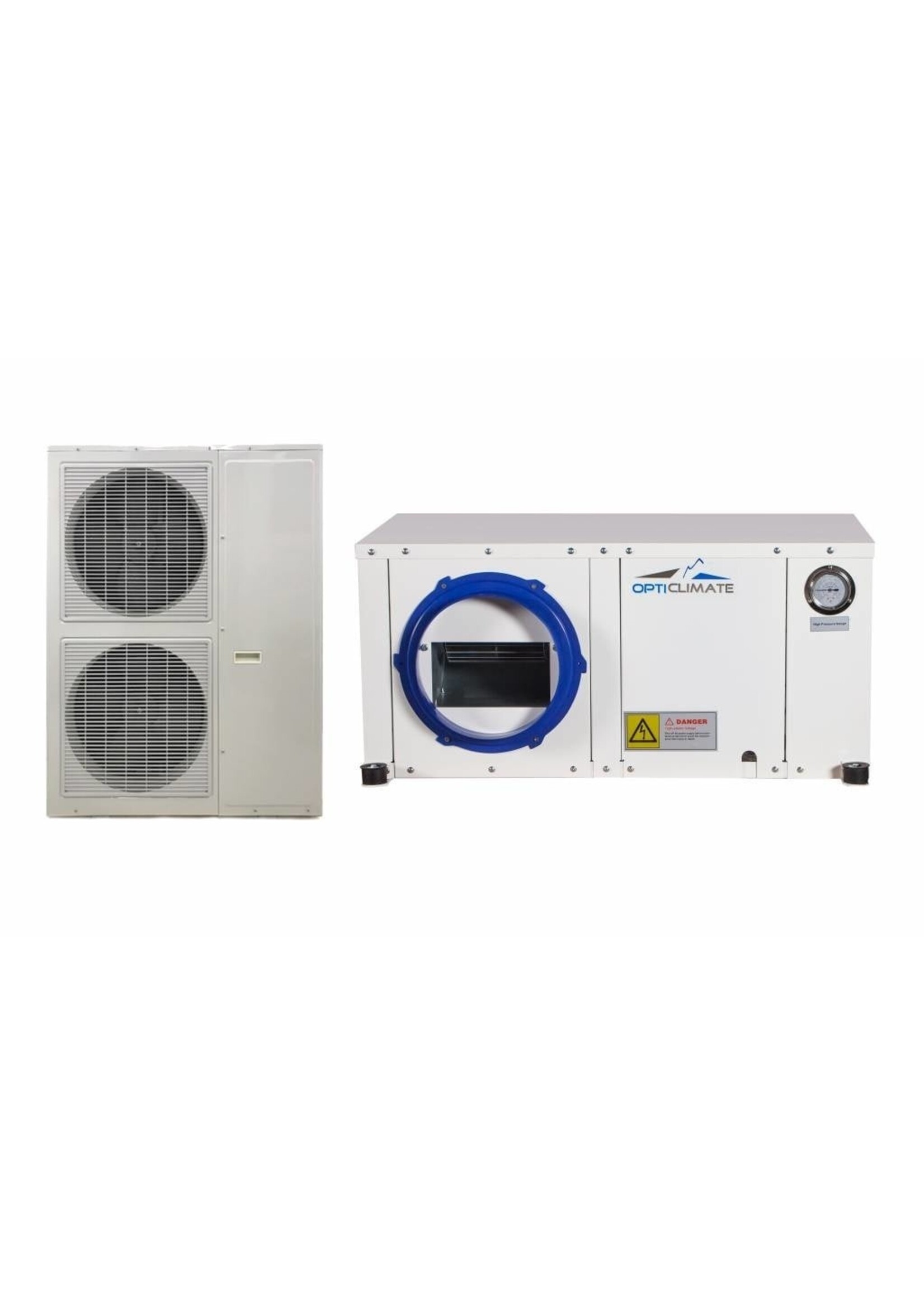

OptiClimate 15000 PRO3 Split EX Inverter air-cooled airco. The Opticlimate Split units are also available in an EX (Extended Reach) model. The EX model can bridge distances up to 30 metres between the indoor and outdoor unit. Comes with a quick-connect 15-metre cooling hose.

The Split EX (Extended Reach) unit of the OptiClimate 15000 PRO3 can bridge a distance upto 30 meter between the indoor unit and outdoor unit. The OptiClimate Split EX Units come standard with a quick-connect 15 meter cooling hose which consists of a set of two hoses. If a longer cooling hose is needed, this can be ordered upto a maximum distance of 30 meters. For example, if 30 meter cooling hose is needed for a OptiClimate 15000 PRO3 Split EX Inverter you should order this cooling hose 15 times (for 15 meters extra).




  • Name: Opticlimate 15000 PRO3 Split EX Inverter
  • Cooling capacity: 15 kW (+ 8% boost)
  • Dimensions indoor unit: 1230 x 900 x 545 mm
  • Weight indoor unit: 160 kg
  • Dimensions outdoor unit: 950 x 360 x 1230 mm
  • Weight outdoor unit: 55 kg
  • Power consumption: 3500W
  • Dehumidification capacity: 270 liters per 24 hours
  • Voltage: 230V - 400V
  • Connection: 3 Phase 5x4mm² + D25-3F MCB
  • Heating elements: 3x2700W
  • Phase: 1 or 3
  • Split Unit: Yes
  • Extended Reach: Yes



Inverter:

Inverter technology ensures smooth control of temperature and humidity. Thanks to the inverter, the OptiClimate is able to continuously adjust the temperature continuously at the set temperature. OptiClimate inverter responds instantly to the smallest differences between the set and actual temperature. The technique prevents that the compressor continously turns on and off on and turn in order to prevent electricity peaks. This allows the OptiClimate inverter to consume less energy and creates a more uniform temperature and humidity as well. This technique also has a 'soft-start' function which increases the speed of the compressor in order to preven high start-up electricity.

The OptiClimate inverter has the unique feature that it's a multi-phase compressor and thus can be connected to 230-240V 1-phase and 400v 3-phase!



Download the user manual for the OptiClimate 15000 PRO3 Split EX Inverter:


User Manual
